Name: 1.80×8.5mm Right Cut RH Cutter, SMT Depaneling Machine Bit
Brand: INFINITE AUTOMATION CO ., LIMITED
SKU: Taglierina per taglio destro da 1,8×8,5 mm per depaneling SMT
Availability: InStock

Casa. > prodotti > pezzi di ricambio dello smt >

1.80×8.5mm Right Cut RH Cutter, SMT Depaneling Machine Bit

Luogo di origine:

Cina

Marca:

Other

Numero di modello:

Taglierina per taglio destro da 1,8×8,5 mm per depaneling SMT

Contattaci

Chiedi un preventivo

1.80×8.5mm Right Cut RH Cutter, SMT Depaneling Machine Bit

Dettagli del prodotto

Termini di pagamento e di spedizione

Quantità di ordine minimo

Prezzo

USD

Imballaggi particolari

Scatola di cartone

Tempi di consegna

3-5 giorni lavorativi

Termini di pagamento

L/C, D/A, D/P, T/T, Western Union

Prodotti correlati

Servomotore Panasonic da 20W per CM402 N510042738AA / MTNM000236AA

Ottieni il miglior prezzo

Panasonic N510056967AA Cavo di supporto

Ottieni il miglior prezzo

Ugello Panasonic KME 140SN

Ottieni il miglior prezzo

Valvola Solenoide Panasonic N510055093AA

Ottieni il miglior prezzo

Contattaci

(86)-13823274872

rosy@pcbsmtmachine.com

86-755-23115005

Contattaci ora

Descrizione del prodotto

1.Product Introduction

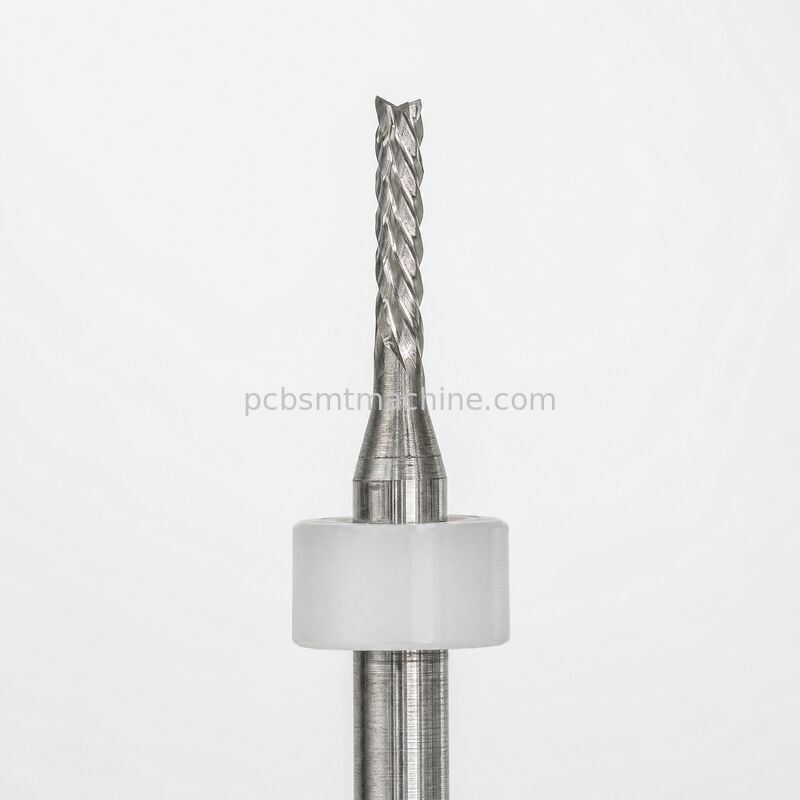

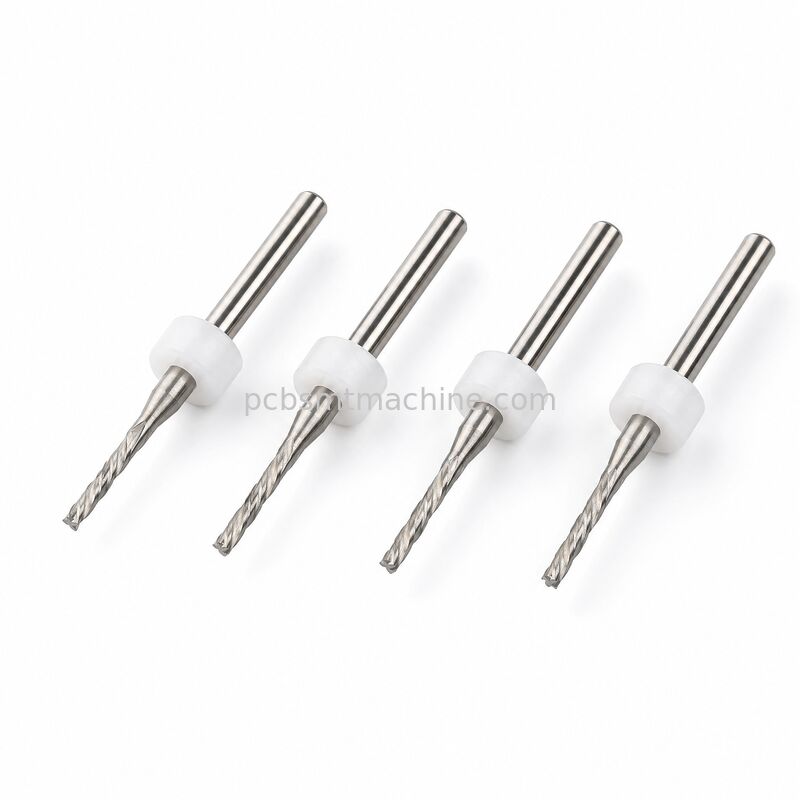

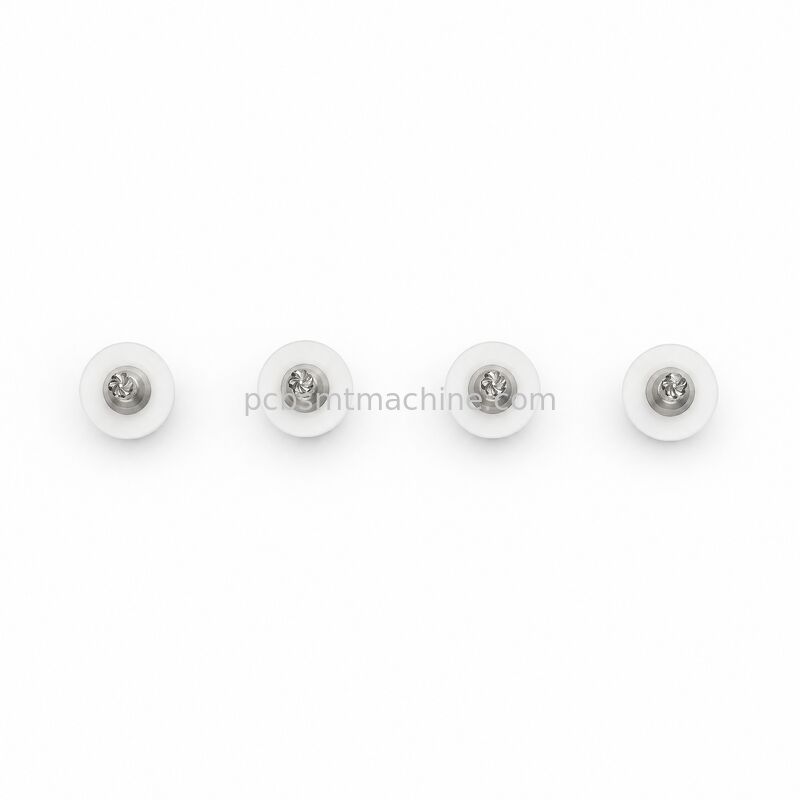

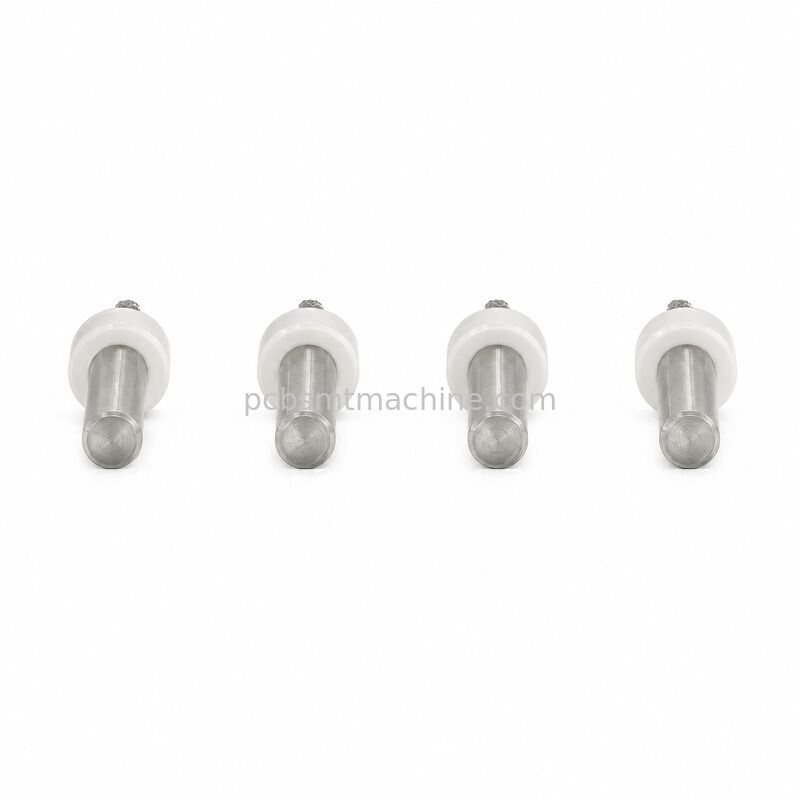

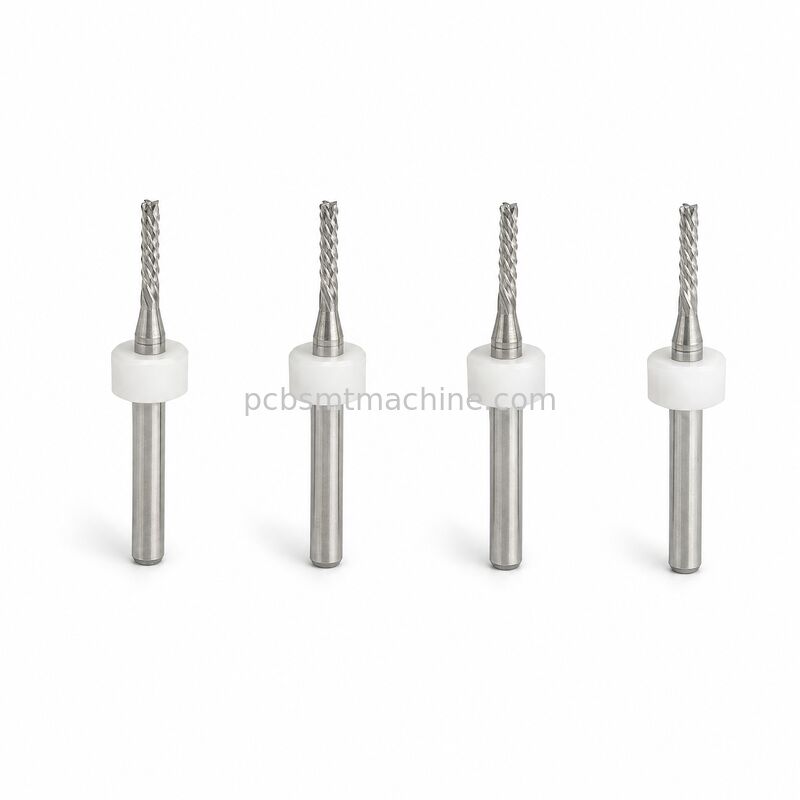

RTX-1.8×8.5 SMT depaneling router bit is manufactured from high-grade tungsten carbide with mirror finishing. It delivers high hardness, outstanding abrasion resistance and stable cutting performance, resisting chipping and fracture during continuous PCB depaneling.

Compatible with SMT depaneling machines and CNC cutting equipment, it is suitable for machining FR-4, CEM-3, copper clad laminate, fiberglass, carbon fiber, engineering plastic and composite materials.

Adopted 5-axis CNC precision grinding, the cutter edge remains sharp with neat, burr-free cutting. The chamfered shank enables secure clamping and non-slip operation.

Both Right-Hand Spiral (RH) and Left-Hand Spiral (LH) are available for customized order, matching different spindle rotation and production processes.

2.Product Parameters

Item	Specification
Model	RTX-1.8×8.5
Material	Tungsten Carbide Cobalt Alloy
Cutting Diameter	1.80mm
Flute Length	8.5mm
Standard Spiral	Right-Hand Spiral (RH)
Custom Spiral	Right-Hand / Left-Hand Spiral (RH/LH) Customizable
Craft	5-Axis CNC Grinding, Mirror Polishing
Application	SMT Depaneling Machine, CNC Router
Processable Materials	PCB, FR-4, CEM-3, Fiberglass, Carbon Fiber, Composite Board

3.Product Advantages

Integrated solid carbide body, long service life for high-volume SMT production.
Precise 5-axis grinding, clean cutting and effective prevention of board edge chipping.
Standard chamfered shank, easy mounting and strong compatibility with mainstream depaneling devices.
Provide RH/LH spiral customization, bulk supply and full production line tool supporting solution.

FAQ

Can you customize RH and LH spiral router bits?

Absolutely. We offer custom service for Right-Hand Spiral and Left-Hand Spiral cutters to fit your machine spindle direction.
Is it applicable for long-term mass depaneling?

Solid carbide material and premium grinding craft ensure high durability and stable performance for daily mass production.
Does the shank slip at high speed?

Optimized chamfered shank design ensures firm clamping, keeping stable operation during high-speed cutting.
